Description

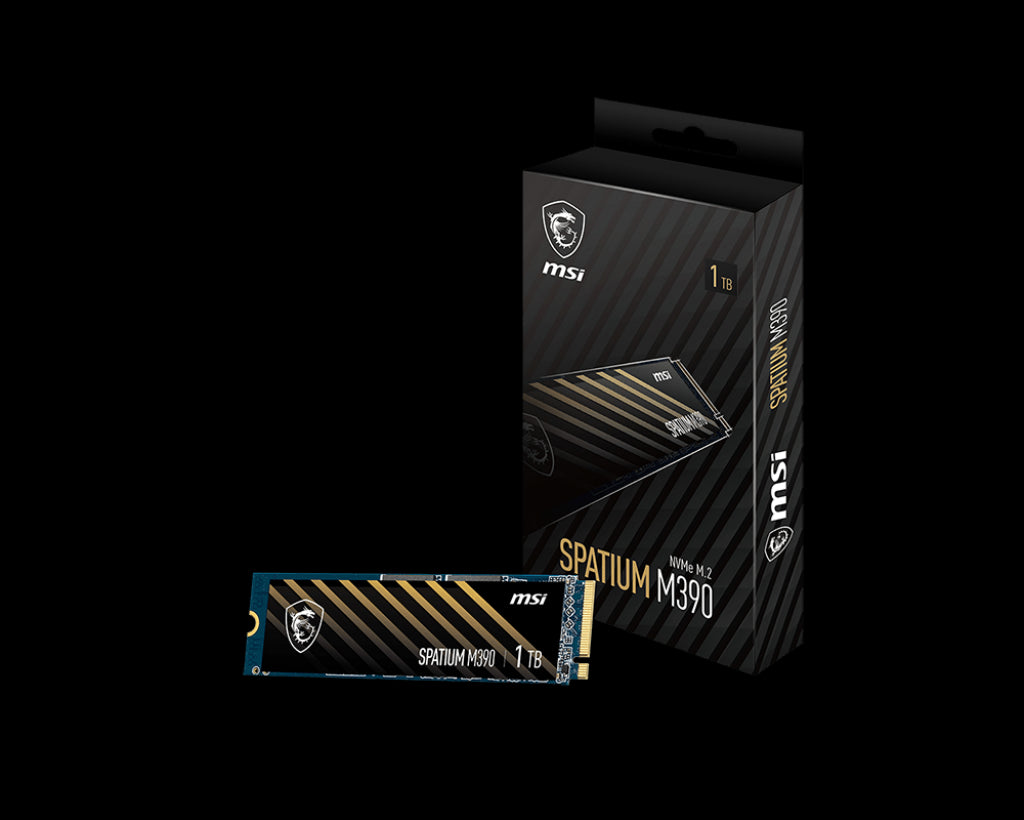

MSI SPATIUM M390 NVMe M.2 1TB SSD, PCIe Gen3x4, Sequential Read up to 3300MB/s, Sequential Write up to 3000MB/s, 400 TBW, 5 Year Warranty
SPECIFICATIONS
Model Name
SPATIUM M390 NVMe M.2
Capacity
1TB
Controller
PHISON E15T
Flash Memory
3D NAND
Form Factor
M.2 2280
Interface
PCIe Gen3x4, NVMe 1.4
Compatibility
PCIe Gen3 / Gen2 / Gen1
Dimensions
80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to(MB/s)
3300
Sequential Write up to(MB/s)
3000
Random Read 4KB up to (IOPS)
420,000
Random Write 4KB up to (IOPS)
550,000
Maximum Operating Power (W)
4.0
Idle Power PS3 (mW)
30
Low Power L1.2 (mW)
5
Operating Temperatures
0°C – 70°C
Storage Temperatures
-40°C – 85°C
Terabytes Written (TBW)
400
Mean Time Between Failure (MTBF)
Up to 1,500,000 Hours
Limited Warranty
5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
