Description

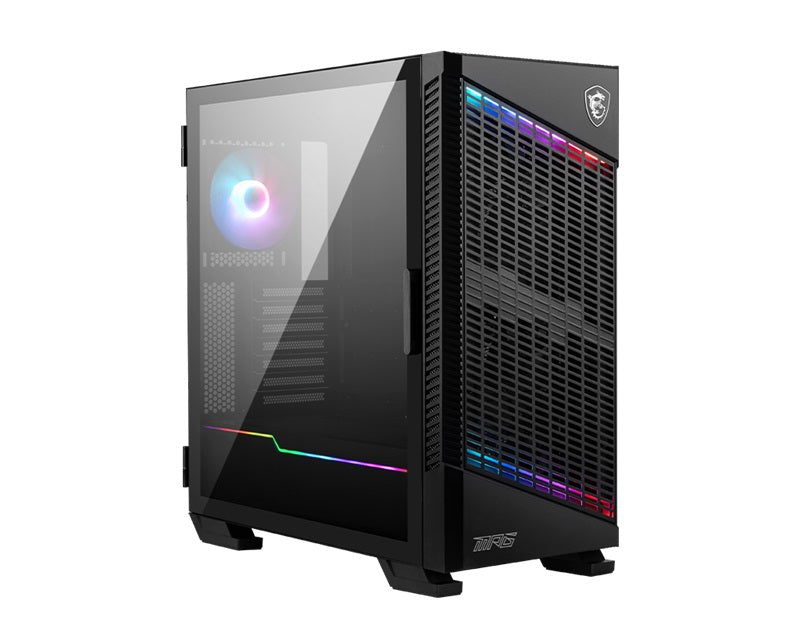

MSI MPG VELOX 100P AIRFLOW Mid-Tower Case, E-ATX / ATX / M-ATX / ITX, 7x Expansion Slots, 2x USB 3.2, 1x USB-C, 1x Audio, 1x Mic, 2x 2.5", 2x3.5"
PRODUCT NAME
CASE FORM FACTOR
I/O PORTS
DRIVER BAYS
CASE EXPANSION SLOTS
MAXIMUM PSU LENGTH
MAXIMUM GPU LENGTH
MAXIMUM CPU COOLER LENGTH
LIGHTING
COOLING LAYOUT
PRE-INSTALL FAN
RADIATOR LAYOUT
SUPPORT MB FORM FACTOR
DIMENSION
DIMENSIOS W/O FEET/PROTRUSIONS/SCREWS (DXWXH)
MPG VELOX 100P AIRFLOW
Mid-Tower
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2x2 Type C
1 x Audio / 1 x Mic
2.5" SSD x 2 / 3.5" HDD x 2
7
Standard ATX, max up to 220mm (without 3.5" HDD tray installed)
380mm / 15inches
175mm / 6.9inches
ARGB
Front: 120mm x 3 or 140mm x 3
Top: 120mm x 3 or 140mm x 2
Rear: 120mm x 1
Side: 120mm x 2
Front: 120mm Fan x 3
Rear: 120mm ARGB Fan x 1
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Rear: 120mm
Side: 120 / 240mm
E-ATX / ATX / M-ATX / ITX
474(W) x 231(D) x 490(H)mm / 18.7(W) x 9.1(D) x 19.3(H)inches
420(W) x 220(D) x 460(H) mm / 16.5(W) x 8.7(D) x 18.1(H) inches
