Description

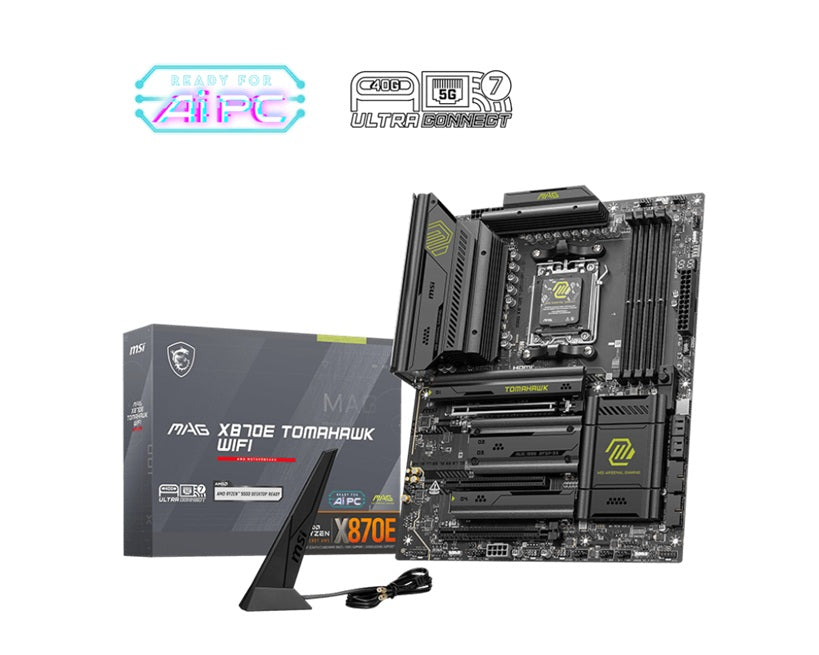

MSI MAG X870E TOMAHAWK WIFI: AM5, Ryzen 9000/8000/7000, DDR5-8400+, PCIe 5.0, Gen5 M.2, USB-C 40Gbps, Wi-Fi 7, BT 5.4, 5G LAN, HDMI 8K, Audio Boost 5
FEATURES
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage performance.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is
2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Audio Boost 5
Isolated audio with a high quality audio processor for the most immersive gaming experience
SPECIFICATIONS
Model Name MAG X870E TOMAHAWK WIFI
CPU Support Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop
Processors
CPU Socket AMD Socket AM5
Chipset AMD X870E Chipset
Graphics Interface 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot
Display Interface Support 8K@60Hz as specified in HDMI™ 2.1 FRL – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-8400+ MT/s (OC)
Storage
2x M.2 Gen5 x4 128Gbps slots
2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports
USB ports 2x USB 40Gbps (2 Type-C)
1x USB 20Gbps (1 Type-C)
3x USB 10Gbps (2 Type-A + 1 Type-C)
7x USB 5Gbps (7 Type-A)
8x USB 2.0
LAN Realtek® 5G LAN
Wireless /Bluetooth Wi-Fi 7 Solution, Bluetooth 5.4
Audio 8-Channel (7.1) HD Audio with Audio Boost 5
