Description

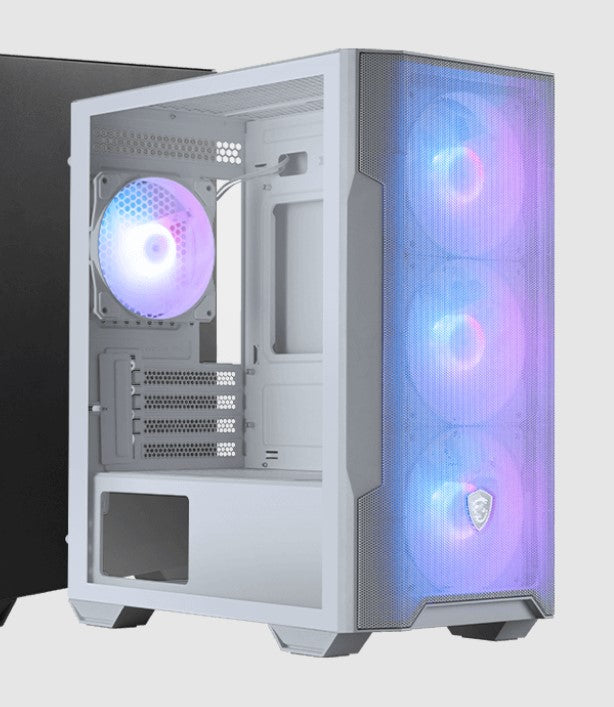

MSI MAG PANO 110R PZ WHITE Micro ATX Case, 2 x USB 5Gbps , 1x USB C 20Gbps, 1 x Audio-Out / Mic,, 3x 2.5", 2x 3.5", Micro ATX / Mini ITX(NEW)
CASE FORM FACTOR Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX
I/O PORTS
1 x USB 20Gbps Type-C
2 x USB 5Gbps Type-A
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button
DRIVE MOUNT SUPPORT 3 x 2.5” 2 x 2.5”/3.5” combo
EXPANSION SLOTS 8
MAXIMUM GPU LENGTH 380 mm / 14.96 inches
MAXIMUM CPU COOLER HEIGHT 166 mm / 6.54 inches
POWER SUPPLY SUPPORT ATX
MAXIMUM PSU LENGTH 200 mm / 7.87 inches
FAN SIZE SUPPORT
Top: 3 x 120 mm / 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
PRE-INSTALLED FAN SIZE Side: 3 x 120 mm Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE Side: 3 x ARGB Reverse-blade Rear: 1 x ARGB
RADIATOR SIZE SUPPORT
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: 120 / 240 / 360 mm
DIMENSIONS (DXWXH)
518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches
