Description

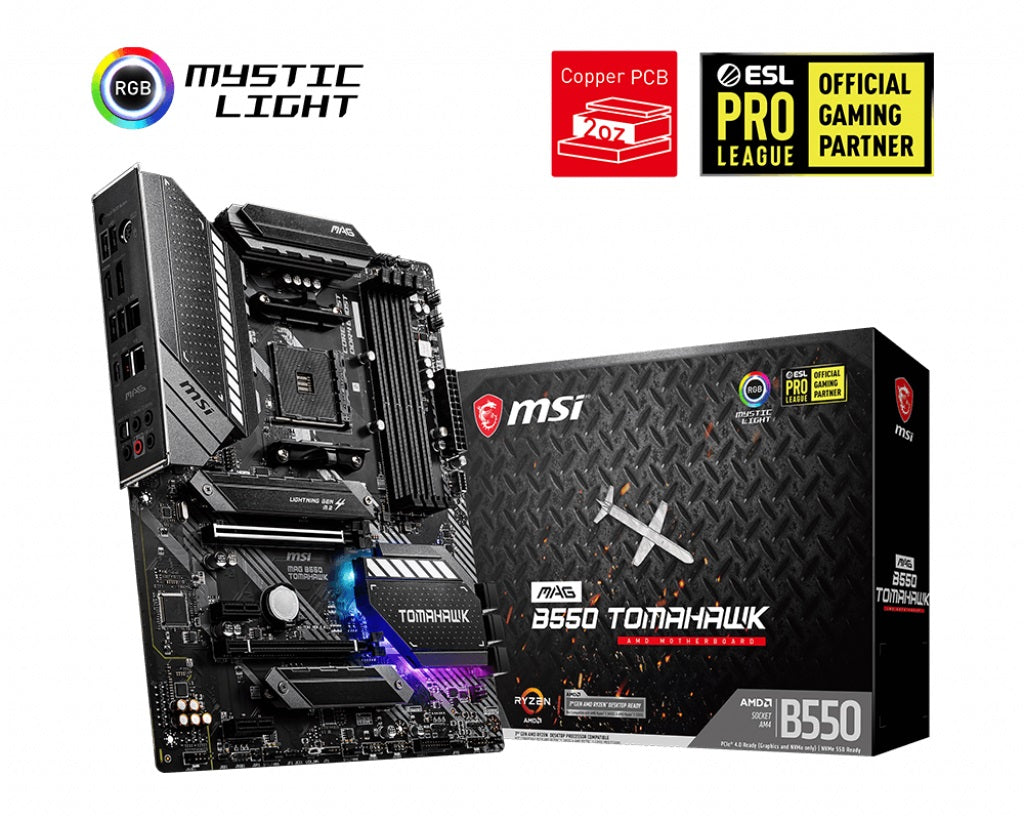

MSI MAG B550 TOMAHAWK ATX Motherboard, AMD Ryzen AM4, 4xDDR4, 1xPCIe4.0 x16slots, 2xPCIe3.0 x16slot, 6xSATA 6Gb, 5xUSB3.2Gen1, 6xUSB2.0, 2.5G LANPort
SPECIFICATIONS
Model Name
MAG B550 TOMAHAWK
CPU Support
3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update
CPU Socket
AMD Socket AM4
Chipset
AMD B550 Chipset
Graphics Interface
1x PCI-E 4.0 x16 slot
1x PCI-E 3.0 x16 slot
Support 2-way AMD CrossFire™ Technology
Display Interface
DisplayPort, HDMI™ – Requires Processor Graphics
Memory Support
4 DIMMs, Dual Channel DDR4-4866+(OC)Mhz
Expansion Slots
2x PCI-E 3.0 x1 slots
Storage
2x M.2 slots, 6x SATA 6Gb/s
SATA RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB Ports
2x USB 3.2 Gen 2 10Gbps (1 Type-C + 1 Type-A)
5x USB 3.2 Gen 1 5Gbps (1 Type-C + 4 Type-A)
6x USB 2.0
LAN
Realtek® RTL8125B 2.5G LAN
Realtek® RTL8111H Gigabit LAN
Audio
8-Channel(7.1) HD Audio with Audio Boost(ALC1200)
