Description

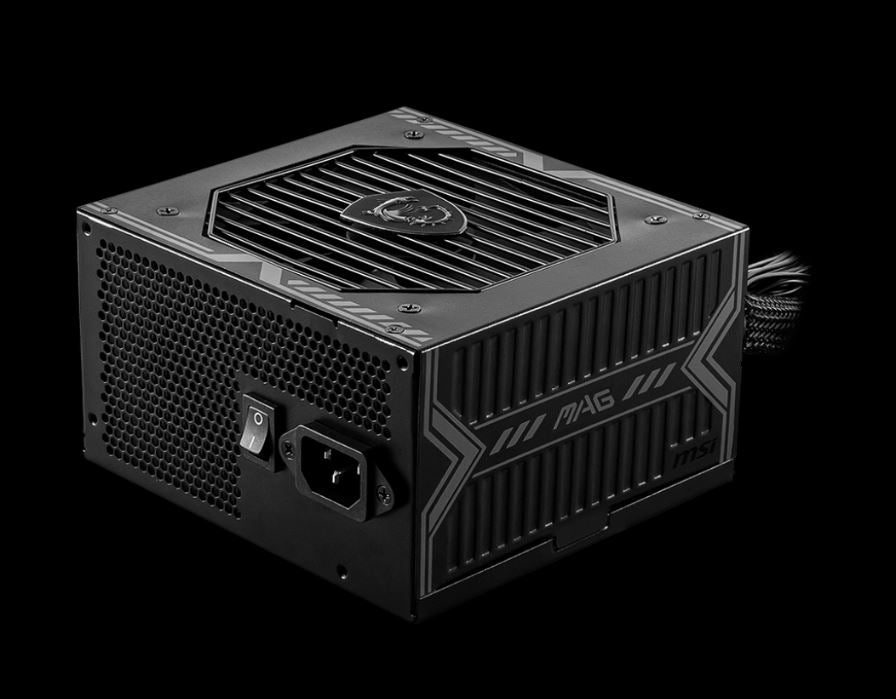

MSI MAG A750BN PCIE5, 750W,DC to DC power Design, Active PFC, ATX, PCIe 5.0(300W), 2xPCI-E, 5xSATA, 2xPERIPHERAL,FDD
The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.
SPECIFICATIONS
Efficiency Rating 80 PLUS Bronze (up to 85%)
Modular No
Fan Size 120 mm
Fan Bearing Sleeve Bearing
Dimensions (DxWxH) 140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches
PFC Type Active PFC
Input Voltage Range 100-240~
Power Watt 750W
Input Frequency Range 50~60Hz
Protection OCP, OVP, OPP, OTP, SCP
ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E 5.0 (16 pin) 1(300W)
PCI-E (6+2 pin) 2
SATA (15 pin) 5
PERIPHERAL(4 pin) 2
FDD (4 pin) 1
