Description

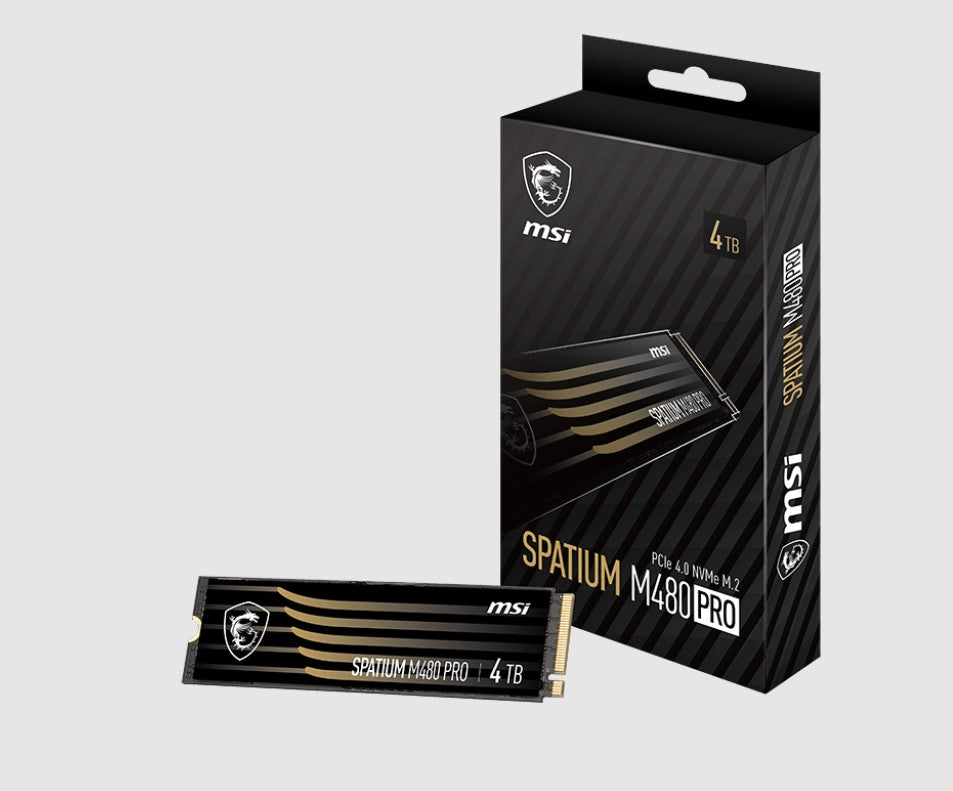

MSI 4TB M480 PCIe 4.0 NVMe M.2 SSD, Sequential Read up to 7400MB/s, Sequential Write 7000MB/s, 3000 TBW, 5 Year Warranty
Capacity 4TB
Controller PHISON E18
Flash Memory 3D NAND
DRAM Cache 2GB DDR4
Form Factor M.2 2280
Interface PCIe Gen4 x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 7400
Sequential Write up to (MB/s) 7000
Random Read 4KB up to (IOPS) 1,000,000
Random Write 4KB up to (IOPS) 1,000,000
Maximum Operating Power (W) 11.3
Idle Power PS3 (mW) 50
Low Power L1.2 (mW) 3
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 3000
Mean Time Between Failure (MTBF) Up to 1,600,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
