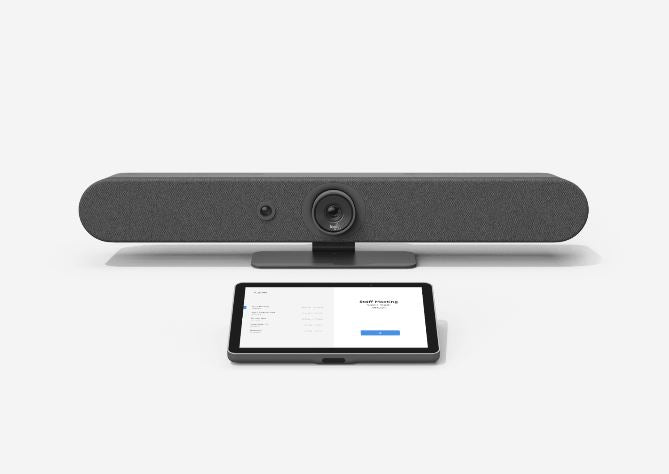

LOGITECH RALLY BAR MINI + TAP IP
Full solution featuring an all-in-one video bar and touch controller with PoE connectivity.
SPECS DETAILS
DIMENSIONS
Tap IP
Height: 56.1 mm
Width: 246.2 mm
Depth: 171.3 mm
Weight: 1.0 kg
Rally Bar Mini
Height: 91.4 mm
Width: 719 mm
Depth: 101 mm
Lens Depth: 18.5 mm
Weight: 4.03 kgs
TECHNICAL SPECIFICATIONS
General Specifications
Tap IP
- Touch Screen: 257 mm diagonal screen with 14° display angle
- Resolution: 1280 x 800
- Cabling: Power over Ethernet (PoE) cable (not included), IEEE 802.3af Type 1, Class 3 device
- Cable Management: Internal cable retention and strain relief system
- Ethernet: 10/100 Mbps
- Wi-Fi: 802.11a/b/g/n/ac
- Device Management: Logitech Sync
- Color: Graphite
- Mounting: 100 mm x 100 mm VESA FDMI
Rally Bar Mini
- Built-in Components: 6 beamforming microphones, motorized pan and tilt camera with 4x digital zoom, 3 speakers, AI Viewfinder, cable management retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 4K
Certifications Compatibility
Appliance Mode
Supports compatible video conferencing software in appliance mode (no PC required), including
Microsoft Teams Rooms
Zoom Rooms
RingCentral Meetings Rooms
Certification
All components included in the room solution bundle are certified for
Zoom Rooms
Microsoft Teams on Android
RingCentral Meetings Rooms
PACKAGE CONTENTS
Logitech Rally Bar Mini video bar
Power supply
Cables
Lens caps
Remote control
User documentation
Logitech Tap IP touch controller
VESA mounting screws (4)
Microfiber Cloth
Documentation
WARRANTY INFORMATION
Standard: 2-year limited hardware warranty included
Extended: 1-year and 3-year extended warranties available at the time of hardware purchase.
