Description

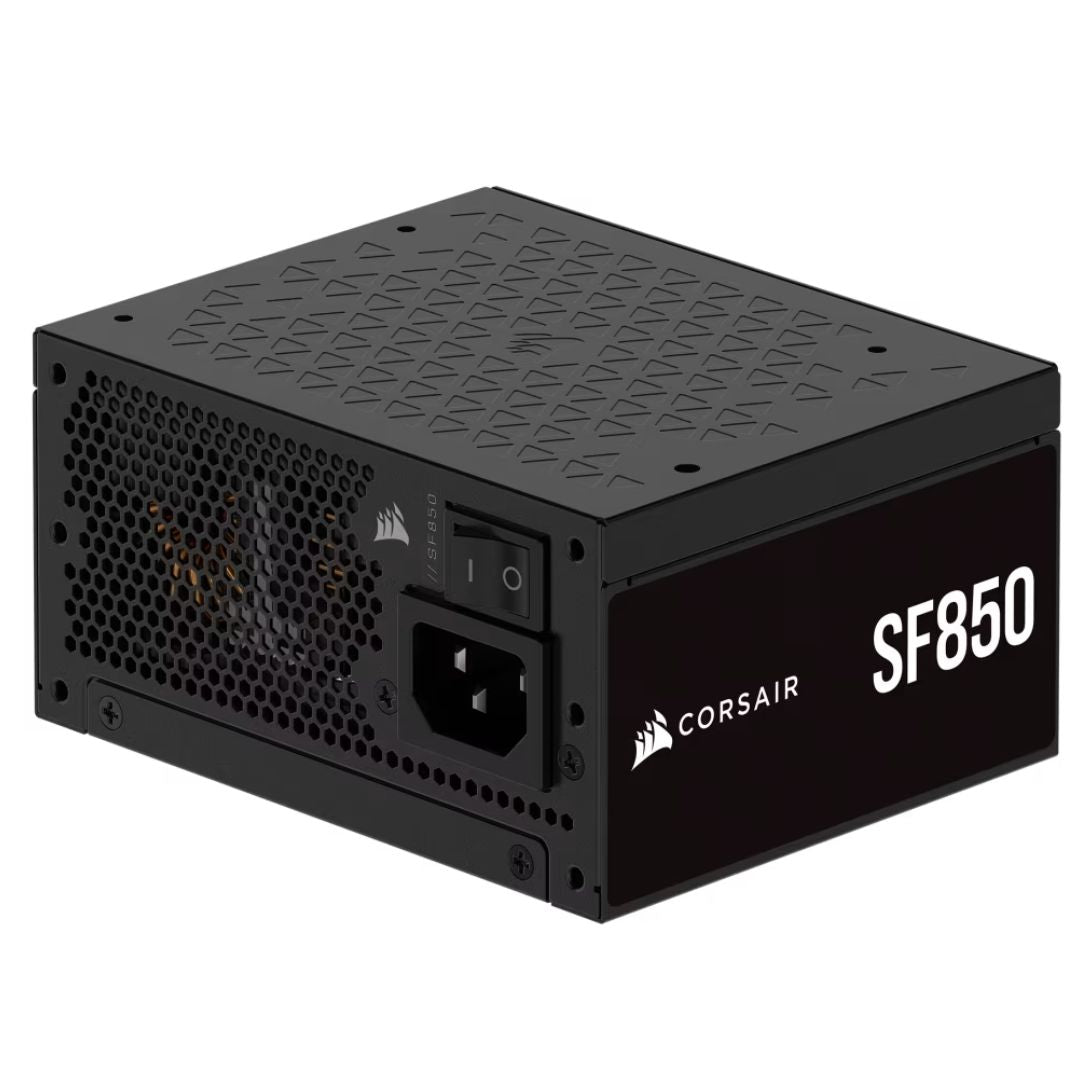

Corsair SF Series SF850 Fully Modular 80 PLUS Platinum SFX Power Supply (AU) – 850W, 92mm FDB, 8×SATA, 3×PCIe, 2×EPS, Type 5, 100K hrs, ATX 3.1
Outfit your next SFF PC with a CORSAIR SF Series 80 PLUS Platinum SFX Power Supply for compact, ATX 3.1 compliant, fully modular Platinum power.
Includes
•0 PLUS Platinum rated efficiency
•ATX 3.1 compliant, supporting PCIe 5.1
•Fully modular, Type-5 Micro-Fit PSU connectors
•92mm PWM cooling fan with Zero RPM mode
PSU WATTAGE
850 Watts
PSU PLUG TYPE
AU-10A/250V
SMALL AND MIGHTY
Don't let the size fool you – this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.
SF850 POWER TABLE
MODEL RPS0175
Part No. 75-005385
AC Input Rating
AC Input 100–240V
Input Current 10A-5A
Frequency 47~63Hz
Max Load Max Output
+3.3V 20A 130W
+5V 20A 130W
+12V 70.8A 850W
+5VSB 3A 15W
TOTAL POWER 850W
Tech Specs
Cybenetics Efficiency
Platinum
Cybenetics Noise
A-
PATA Connector
3
EPS Connector
2
SATA Connector
8
Fan Bearing Technology
Fluid Dynamic Bearing
Modular
Fully
Cable Type
Type 5
PCIe Connector
3
Zero RPM Mode
Yes
PSU Form Factor
SFX
Multi GPU Ready
Yes
Fan Size MM
92mm
Continuous Power W
850 Watts
ATX Connector
1
ATX12V Version
3.1
MTBF Hours
100,000 hours
80 PLUS Efficiency
Platinum
Warranty
7 Year
Weight
2.30kg
