Description

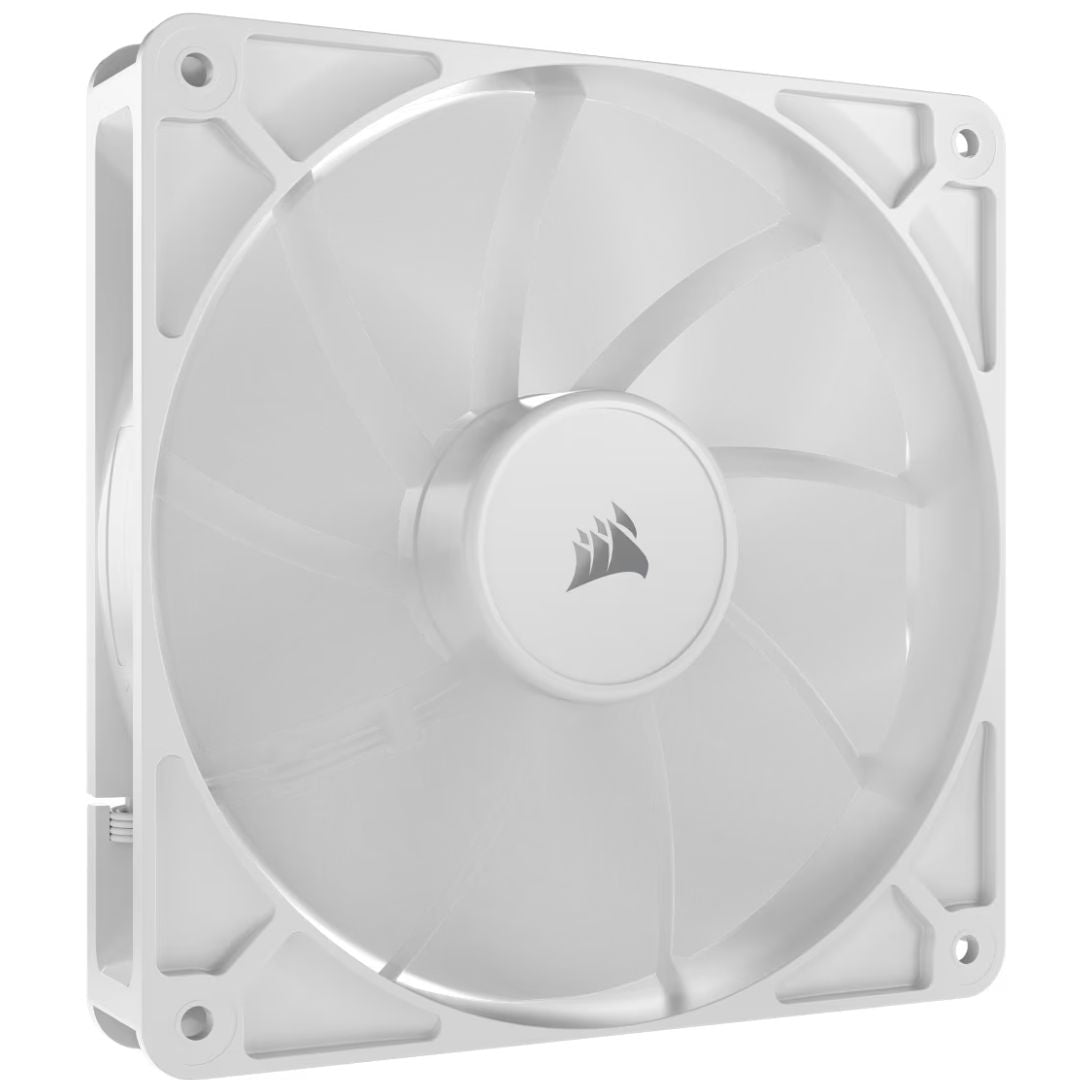

Corsair RS140 140mm PWM Fan - Single Pack - White: 95.5 CFM, 1700 RPM, 36 dBA, 045A, Static Pressure, Magnetic Dome Bearing
Add a CORSAIR RS140 140mm PWM Fan to your cooling setup, offering daisy-chainable 4-pin PWM control and strong, concentrated airflow.
Includes
•Daisy-chainable 4-pin PWM connectors
•CORSAIR AirGuide technology for concentrated airflow
•CORSAIR Magnetic Dome bearing for longevity and low noise
•Zero RPM mode at low load
FAN SIZE
140mm x 25mm
FANS PACKAGE QUANTITY
Single Pack
COLOR
White
DIRECT-TO-MOTHERBOARD CONNECTION
Skip the fan hubs and excessive cables – daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both.
MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
PROVEN COOLING PERFORMANCE
RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection.
ZERO RPM MODE
PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise.
TECH SPECS
Weight 0.293kg
Fan Airflow 14.6 - 95.5 CFM
Fan Model RS SERIES
Flow Type STATIC PRESSURE
LINK Compatibility None
Fan Static Pressure 0.11 – 3.46 mm-H2O
Speed 330 – 1700 RPM ±10%
Sound Level 10 - 36 dBA
PWM Control Yes
Power Draw 0.45A
Package Quantity 1
LED Color NONE
Fan Size 140mm x 25mm
Bearing Type Magnetic Dome
