Description

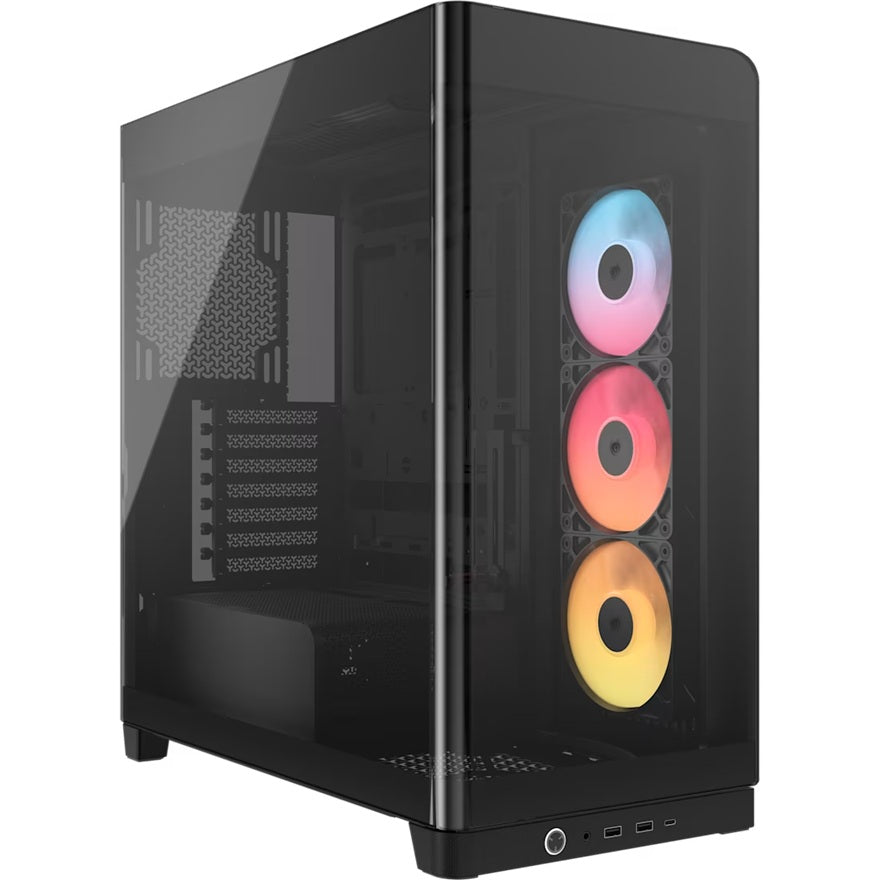

Corsair FRAME 4500X RS-R ARGB Panoramic Glass Mid-Tower PC Case - Black, 478x499x246mm, E-ATX, 460mm GPU, 185mm CPU, USB-C, ARGB, 360mm rad, 11.58kg
•Single-piece curved glass front and side panel
•InfiniRail™ Fan Mounting System for easier building
•Dual 360mm radiator support
•3x RS-R ARGB 120mm reverse-rotor fans
•Easy motherboard RGB control with bundled ARGB PWM fans
•GPU Anti-sag Stabilization Arm
•Compatible with reverse connector motherboards
COLOR
Black
EDITION
FRAME 4500X RS-R ARGB
Tech Specs
Case Supported Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height 478
Case Length 499
Case Width 246
Material Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Motherboard Support Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Color BLACK
Case Size Mid-Tower
Radiator Compatibility 120mm, 140mm, 240mm, 280mm, 360mm
Case Window Tempered Glass
Compatible Liquid Coolers H60, H100, H115, H150, NAUTILUS, TITAN
Case Warranty 2 Year
Internal 3.5" Drive Bays 1
Internal 2.5" Drive Bays 2
Maximum CPU Cooler Height 185mm
Maximum PSU Length 250mm
Case Front IO (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length 460mm
Weight 11.58kg
Case Expansion Slots 7 Horizontal or 3 Vertical
Case Power Supply ATX
Radiator Support - Top 360mm, 280mm, 240mm
Radiator Support - Front None
Radiator Support - Bottom None
Radiator Support - Side 360mm, 280mm, 240mm
Radiator Support - Rear 140mm, 120mm
Fan Support - Top 3x 120mm, 2x 140mm
Fan Support - Front None
Fan Support - Bottom 3x 120mm, 1x 140mm
Fan Support - Side 3x 120mm, 2x 140mm
Fan Support - Rear 1x 120mm, 1x 140mm
Front IO Motherboard Connections 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support Yes
Included Fans RS ARGB Series
Dust Filtration Yes
Cable Routing Space 37mm
RapidRoute Included No
Left Side Panel Tempered Glass
Right Side Panel Steel
Vertical Mount Support Supported (Riser Card Sold Separately)
