Description

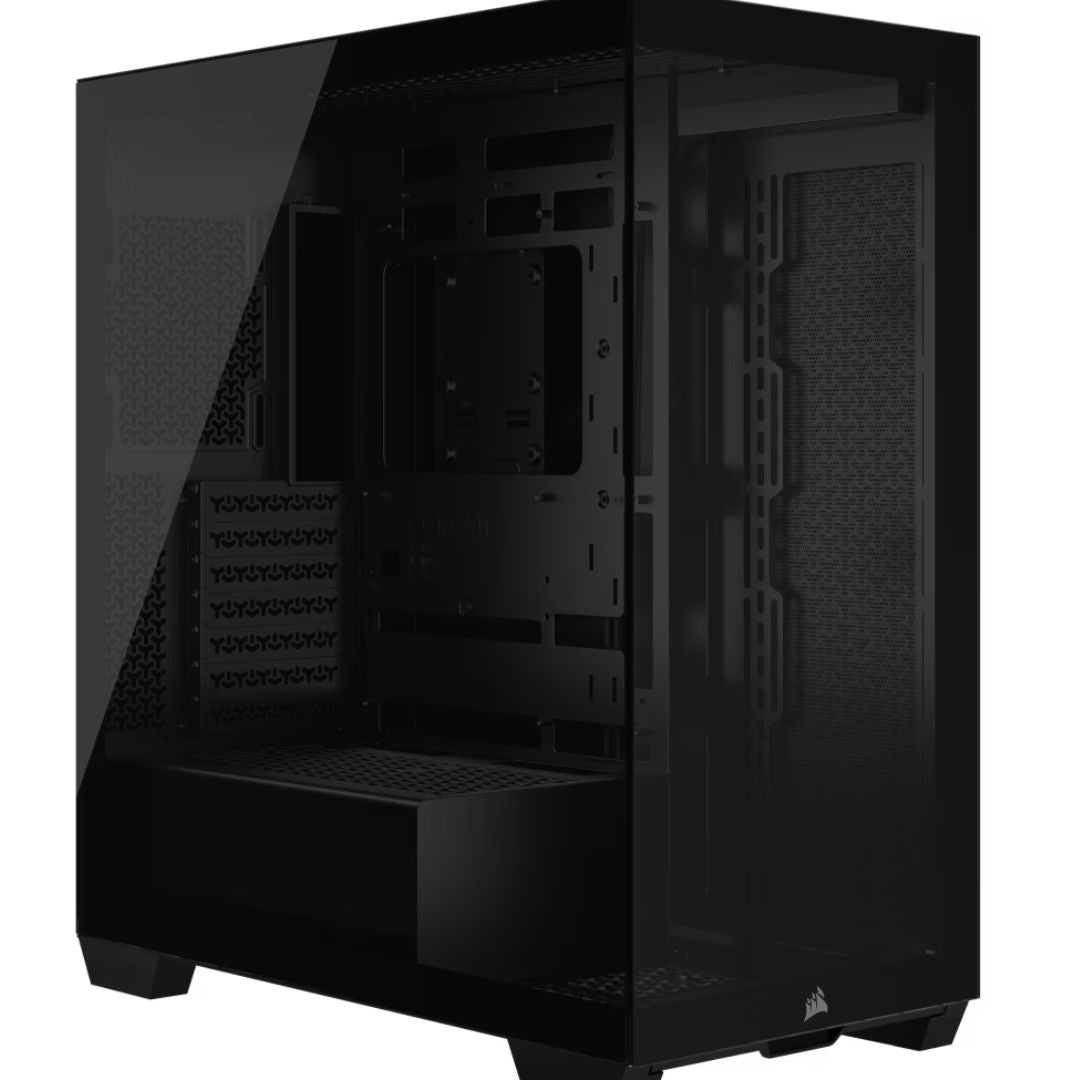

Corsair 3500X Mid-Tower PC Case, Black – 506×240×460mm, ATX/E-ATX, 425mm GPU, 170mm CPU, 360 rad side/top, TG panel, USB-C, 7+4 slots, 2 yr wty
The CORSAIR 3500X Mid-Tower Glass PC Case combines builder-friendly features with a stunning wraparound glass aesthetic and the cooling potential you need for an amazing PC.
Includes
•Wraparound glass view with removable front and side panels
•Builder-friendly features for a high-performance custom PC
•Side, roof, and PSU fan mounting points for great cooling
•Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH
BUILD WITHOUT BOUNDARIES
You don’t need a large footprint to build a decked-out PC. The 3500X accommodates most large graphics cards and CPU coolers, 360mm radiators, and even EATX motherboards – without taking up your entire desk.
For a truly immaculate build, the 3500X is compatible with most reverse connector motherboards (including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH) keeping your connections and cables out of sight.
COOLING PERFORMANCE
Strong cooling is paramount for a modern PC, and the 3500X excels with side, roof, and PSU fan mounts so you can cover all the angles. And with 360mm radiator mounting points in the side and roof, you’ll have plenty of potential for liquid cooling.
A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the 3500X has the convenient features to take the hassle out of your build.
TECH SPECS
Case Supported
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Case Height
506
Case Length
460
Case Width
240
Material
Steel, Tempered Glass
Motherboard Support
Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
Color
BLACK
Case Size
Mid-Tower
Radiator Compatibility
120mm, 140mm, 240mm, 280mm, 360mm
Case Window
Tempered Glass
Compatible Liquid Coolers
H60, H100, H115, H150 (All Series)
Case Warranty
2 Year
Internal 3.5" Drive Bays
2
Internal 2.5" Drive Bays
2
Maximum CPU Cooler Height
170mm
Maximum PSU Length
180mm
Case Front IO
(1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length
425mm
Weight
9.71kg
Case Expansion Slots
7 Horizontal (or 4 Vertical)
Case Power Supply
ATX
Radiator Support - Top
360mm, 280mm, 240mm
Radiator Support - Front
None
Radiator Support - Bottom
None
Radiator Support - Side
360mm, 280mm, 240mm
Radiator Support - Rear
1x 120mm
Fan Support - Top
3x 120mm; 2x 140mm
Fan Support - Front
None
Fan Support - Bottom
3x 120mm; 1x 140mm
Fan Support - Side
3x 120mm; 2x 140mm
Fan Support - Rear
1x 120mm
Front IO Motherboard Connections
1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support
Yes
Included Fans
No Fans Included
Dust Filtration
Yes
Cable Routing Space
45mm
RapidRoute Included
Compatible (Sold Separately)
Left Side Panel
Tempered Glass
Right Side Panel
Steel
Vertical Mount Support
Supported (Riser Card Sold Separately)
