Description

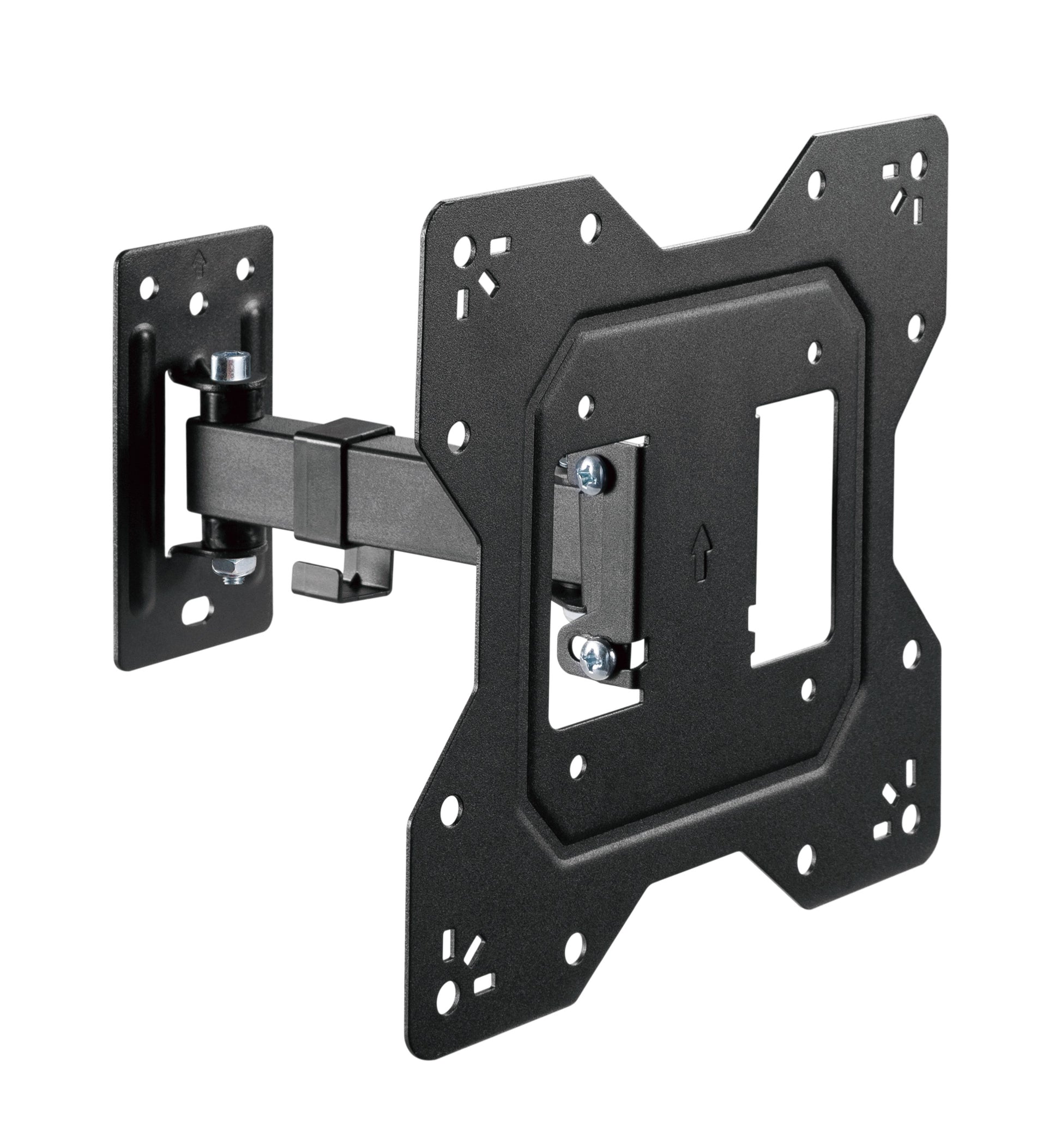

BrateckEconomical Full-Motion TV Wall Mount For 23"-43" Fit Curved TV up to 30KG, VESA 100x100,100x200,200x100,200x200 Fine Texture Black
FEATURES:
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Cable Management: keeps everything organized
SPECIFICATIONS
Product Category: Full-motion TV Wall Mount
Rank: Economy
Material: Steel
Metal Sheet Thickness: VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (VESA Panel THK=0.071" cold-rolled sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size: 30x20x1.2mm Square Steel Tube (1.2"x0.79"x0.047" Square Steel Tube)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 230x230x204mm (9.1"x9.1"x8")
Fit Screen Size: 23"-43"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA Only
VESA Compatible: 100x100,100x200,200x100,200x200
Max. Mounting Hole: 200x200
Weight Capacity: 30kg (66lbs)
Strength Tested: 3 Times Approved
Profile: 56~204mm (2.2"~8")
Tilt Range: ＋5°～-8°
Swivel Range: +90°~-90°
Screen Freely Tilting: No
Installation: Solid Wall,Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: Yes
Accessory Kit Package: Compartment Polybag
