Description

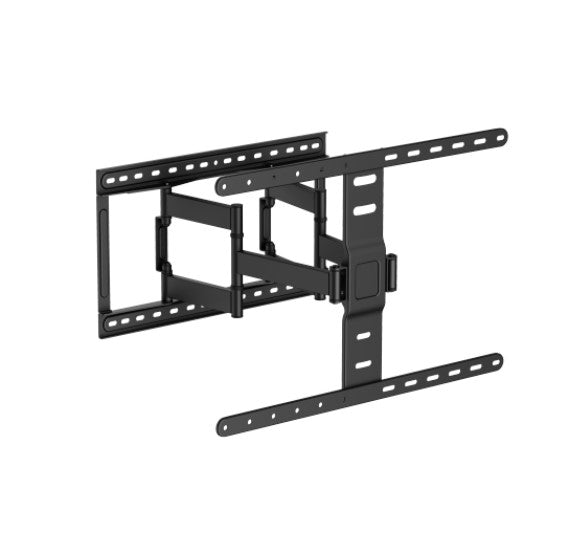

Brateck LPA83-466 MODERN ULTRA-SLIM FULL-MOTION TV WALL MOUNT For most 43"-90" TVs
FEATURES
●Ultra-slim design
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Folding Design: saves space (keeping the screen and arm out of the way when not in use)
●Cable Management: keeps everything organized
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Easy Assembly: Installation is as easy as 1-2-3
SPECIFICATIONS
Product Category: Full-motion TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness:
Bracket Arm THK=3.0mm pickling sheet,VESA Panel THK=2.5mm pickling sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.12" pickling sheet,VESA Panel THK=0.098" pickling sheet,Wall Plate THK=0.098" pickling sheet)
Pipe Size: 40x15x1.2mm Square Steel Tube (1.6"x0.59"x0.047" Square Steel Tube)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 420x509x632mm (16.5"x20"x24.9")
Fit Screen Size: 43"-90"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA Universal
VESA Compatible: 100x200,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,600x200,400x400,600x300,600x400
Max. Mounting Hole: 602x400
Weight Capacity: 60kg (132lbs)
Strength Tested: 4 Times Approved
Profile: 27~420mm (1.1"~16.5")
Tilt Range: +3°~-12°
Swivel Range: +60°~-60°
Screen Level: +3°~-3°
Screen Freely Tilting: Yes
Installation: Solid Wall,Double Stud(406mm/450mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: Yes
Cable Management: Yes
Anti-theft: No
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Silk Screen: Can be silkscreen printed
