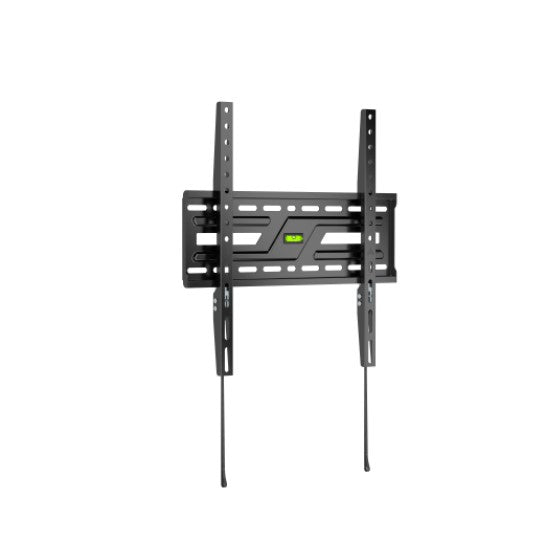

Brateck KL38-44F Large-Screen Compact Fixed TV Wall Mount (new)
FEATURES
●Heavy-Duty Steel Construction: provides extra strength and durability
●Open Architecture: provides increased ventilation and easier access to wires
●Slim Design: provides a low profile
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Integrated Bubble Level: assures alignment
SPECIFICATIONS
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059" cold-rolled sheet,Wall Plate THK=0.059" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 24x438x425mm (0.94"x17.2"x16.7")
Fit Screen Size: 32"-75"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA Universal
VESA Compatible: 50x50,75x75,100x100,100x200,200x100,200x200,200x300,300x200,200x400,400x200,300x300,300x400,400x300,400x400
Max. Mounting Hole: 410x402
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 24mm (0.94")
Installation: Solid Wall,Double Stud(406mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: No
Cable Management: No
Anti-theft: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate/VESA Panel)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Silk Screen: Can be silkscreen printed
