Belkin Cybersecurity and Secure KVM 2-Port Single Head DP Modular Secure KVM Switch PP4.0 W/ Remote-Black(F1DN102MOD-PP-4)

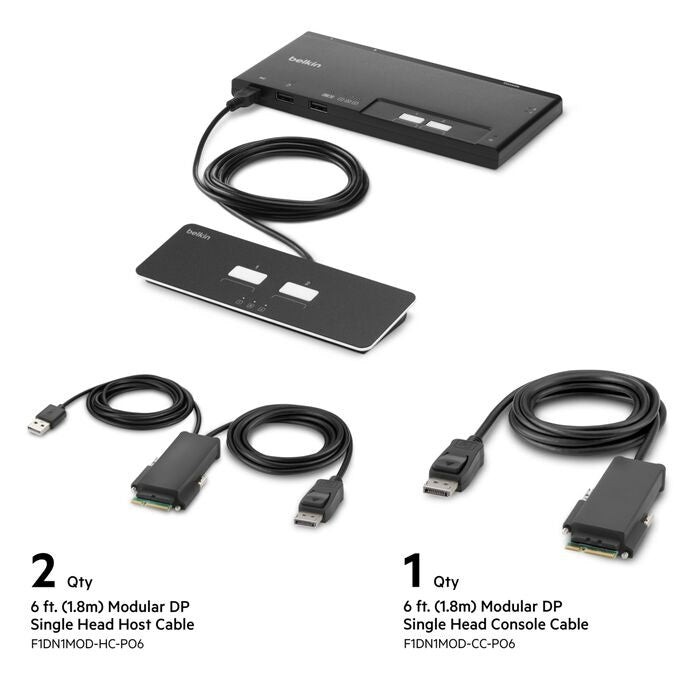

What’s in the Box :
Belkin F1DN102MOD-BA-4 Modular Secure 2-Port, Single Monitor Switch Base Unit
Belkin Modular Secure KVM Series 2-Channel Remote Control
Belkin 2x F1DN1MOD-HC-P06 DisplayPort™ Single Head Host Cables, 6ft
Belkin 1x F1DN1MOD-CC-P06 DisplayPort™ Single Console Cable, 6ft
12V, 2.5A Universal Power Supply with Worldwide Adapters
Port Naming and Enclave Coloring Labels
Quick Start Guide and Compliance Documentation
At a Glance :
Designed for NIAP PP PSD 4.0 compliance
Video support for up to 4K (3840x2160), @30Hz refresh
Optional DP, mDP, DPMST, HDMI, DVI, VGA, and USB-C cables - host and console
Modular form factor for maximizing desk space
Supports up to two host computers
Support one display for the user
Included remote-control unit
Included host and console cables
Secure packaging: Tamper-evident packaging ensures product is not tampered with during transport
Technical Specifications :
Certifications : FCC Class A UL CE RoHS ICES RCM
Console Ports : 1, Single Monitor
Display Connection : DisplayPort
Display Type : DisplayPort
External Power : Yes
Form Factor : Desktop or Remote Mount
Host Ports : 2
Housing Type : Diecast Aluminum
Indicator Light Status : Port Selected EDID Keyboard Mouse CAP Lock NUM Lock SKRL Lock
Keyboard Input : 1
Keyboard/Mouse Connections : 2
Keyboard Type : USB
KVM Maximum Resolution Supported : 4K@30hz
Local Console Interfaces : 1, Single Monitor
Maximum Resolution : 4K@30hz
Mouse Input : 1
Mouse Type : USB
PC Ports : 2
Power Rating : 12VDC 2.5A
Power Supply Included : Yes
Power Supply Type : External
Remote Control Included : Yes
Supported Audio Formats : Digital via Video Connection
Supported Video Formats : DisplayPort
TAA Compliant : Yes
Input Voltage (AC) : 100-240
AC Plug Style : Worldwide Interchangable Mains Connector
Ports: 1 Keyboard, 1 Monitor, 1 Mouse, 1 Remote Control, 2 Computers
