Description

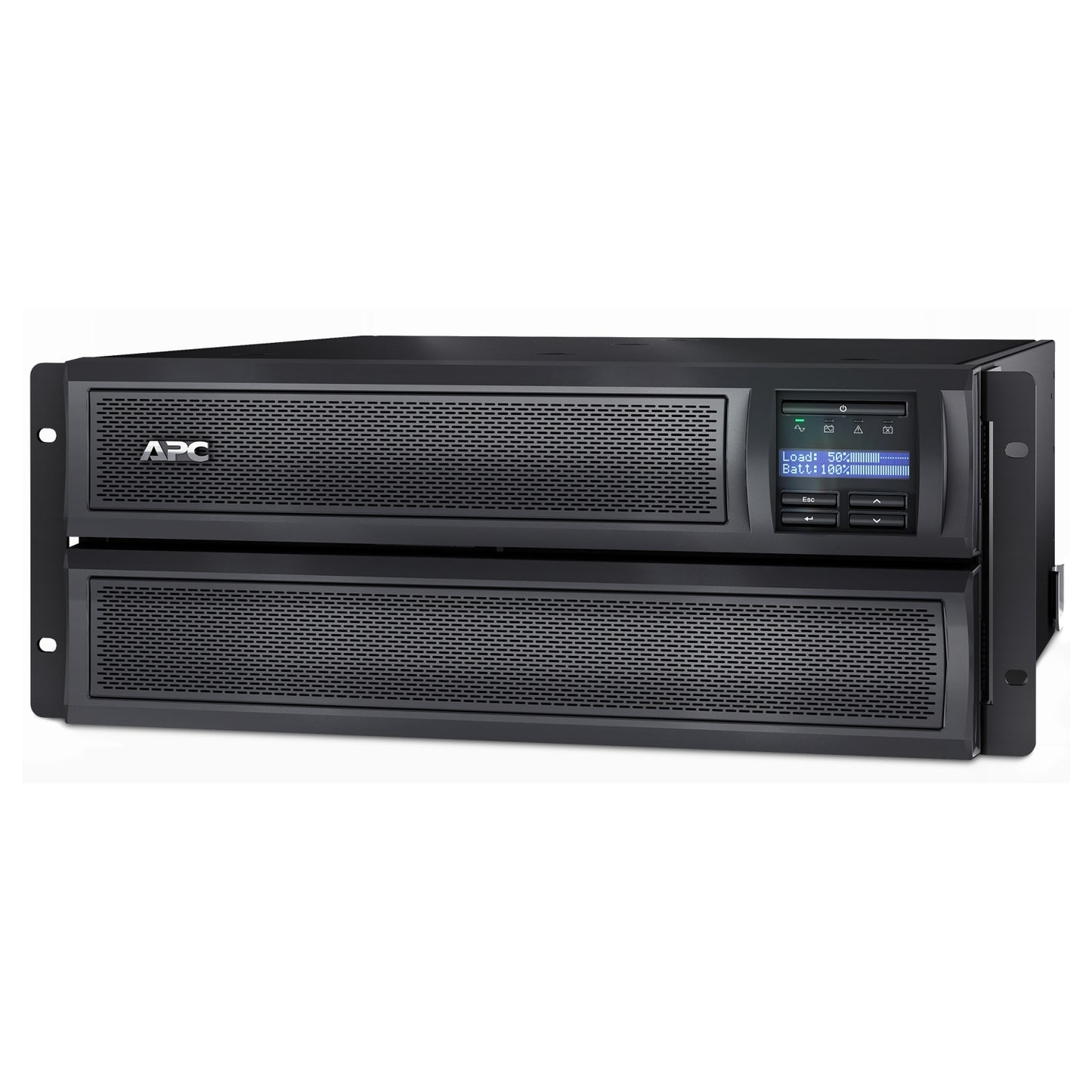

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 3000VA/2700W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 4U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages.
Main Input Voltage 208 V 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 208 V, 220 V, 240 V
Rated power in W 2700 W
Rated power in VA 3000 VA
Input Connection Type IEC 320 C20
Schuko CEE 7 / EU1-16P BS1363A British
Output connection type 8 IEC 320 C13, 2 IEC Jumpers, 2 IEC 320 C19
Number of rack unit 4U
Cable length 1.83 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment- CD with software, Documentation CD, Smart UPS signalling RS-232 cable, User manual, USB cable, Rack mounting brackets
Acoustic level 55 dBA
Heat dissipation 184 Btu/h
Operating altitude 0...10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %
Mounting mode- Rack mountable
Replacement Battery -APCRBC143
Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW
Compatible Service bypass panels- SBP16KRMI4U, SBP6KRMI2U,SBP3000RMHW, SBP3000RMI, SBP5000RMI2U
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC- AP9613, AP9620, AP9640, AP9641, AP9643,AP9810
Compatible Mounting- AP9625, AR201, NBAC0302
