Description

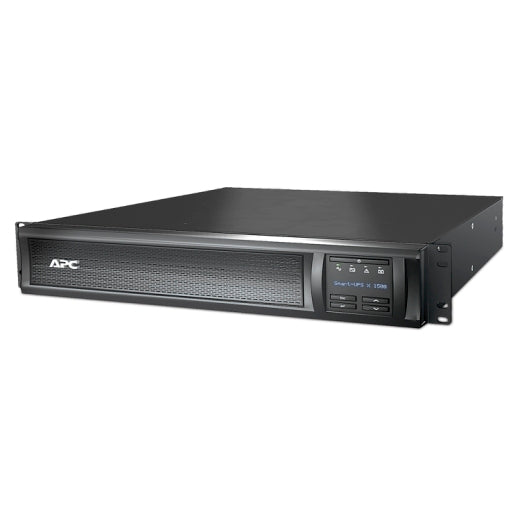

APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, Network card, Extended runtime
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1500VA/1200W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 2U rack/tower convertible SMX has a preinstalled Network Management Card in the Smart Slot for UPS network-based monitoring and management. PowerChute network shutdown provides graceful, unattended shutdown. The UPS has extendable batteries (up to 10) for more runtime during prolonged outages. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables.
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 1200 W
Rated power in VA 1500 VA
Input Connection Type IEC 320 C14
Output connection type 8 IEC 320 C13, 2 IEC Jumpers
Number of rack unit 2U
Cable length 1.83 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment- CD with software, Documentation CD, Installation guide, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Switching current capacity 10 A
Input voltage limits 151...302 V adjustable, 160...286 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Acoustic level 40 dBA
Heat dissipation 133 Btu/h
Operating altitude 0...10000 ft
Ambient air temperature for operation 0…45 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %
Mounting mode- Rack mounted
Replacement Battery -APCRBC115
Compatible PDU- AP6015A, AP7820B, AP7850B, AP7920B, AP7950B
Compatible Service bypass panels- SBP1500RMI
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC- AP9613, AP9620, AP9640, AP9641, AP9643,AP9810
Compatible Mounting- AP9625, AR201
Compatible Batteries- SMX48RMBP2
