Description

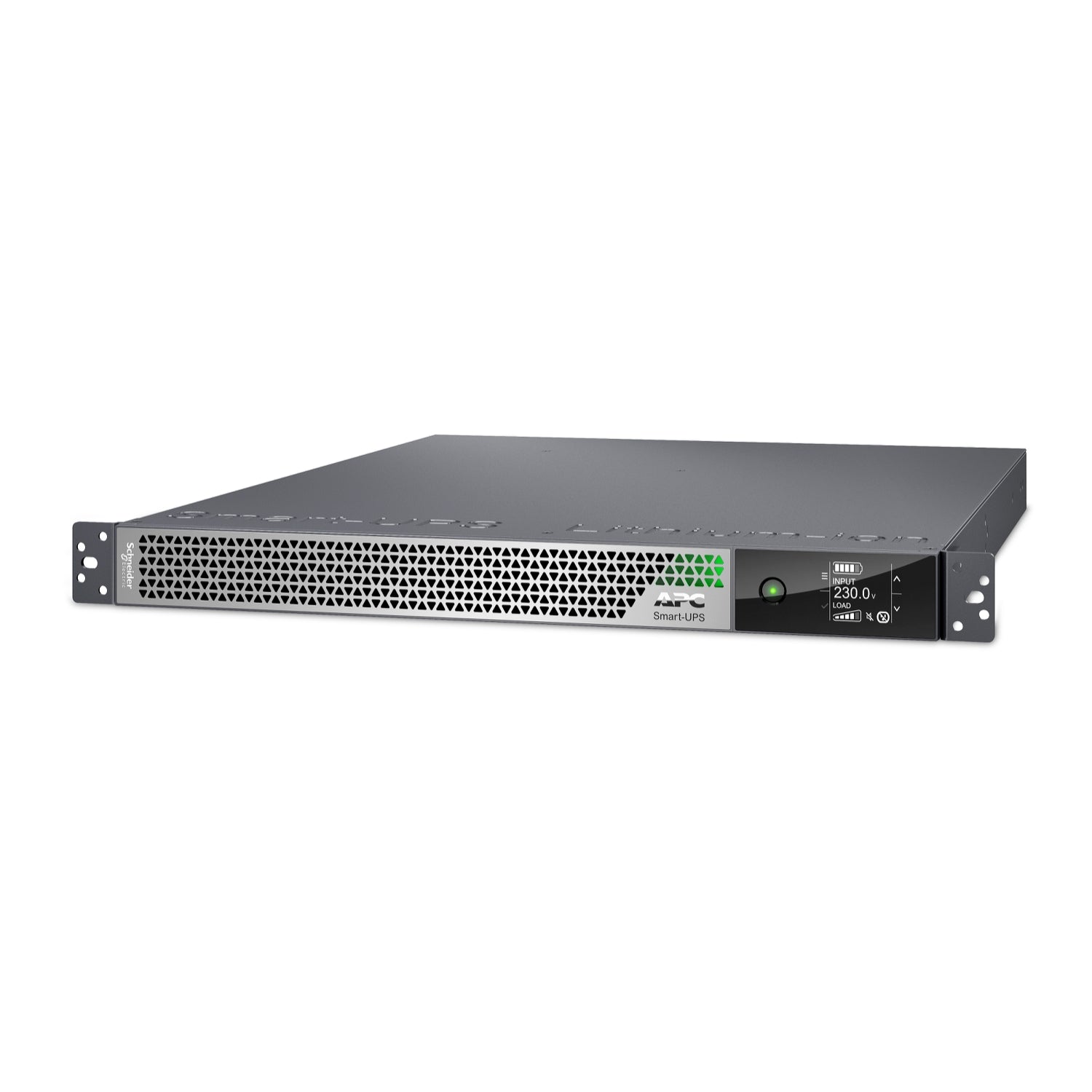

APC Smart-UPS Ultra On-Line, 3000VA, Lithium-ion, Rack/Tower 1U, 230V, 3x C13, 2x C19 IEC outlets, Network Card, Extended runtime, W/rail kit
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with IEC Inlet, 3x IEC C13 and 2x IEC C19 outlets. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.
Run time for load 3000 W 4min 37s
Min-max: 300-3000 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Other Input Voltage 230 V
Main Output Voltage 230 V
Other Output Voltage 230 V
Rated power in W 3000 W
Rated power in VA 3000 VA
Input Connection Type BS1363A British, IEC 60320 C20, Schuko CEE 7 / EU1-16P
Output connection type 3 IEC 320 C13, 2 IEC 320 C19
Number of rack unit 1U
Cable length 2.44 m
Number of cables 1
Battery type Li-Ion (Lithium-Ion)
Provided equipment- RJ45 cable, USB cable, Safety guide, Rack mounting brackets, Stabilization feet, Screws
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dB
Heat dissipation 325 Btu/h
IP degree of protection IP20
Mounting mode- Rack mounted with kit, Tower-mounted with kit
Replacement Battery -APCRBC173-LI
Compatible Service bypass panels-SBP3000RMHW, SBP3000RMI
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC -AP9810
