Description

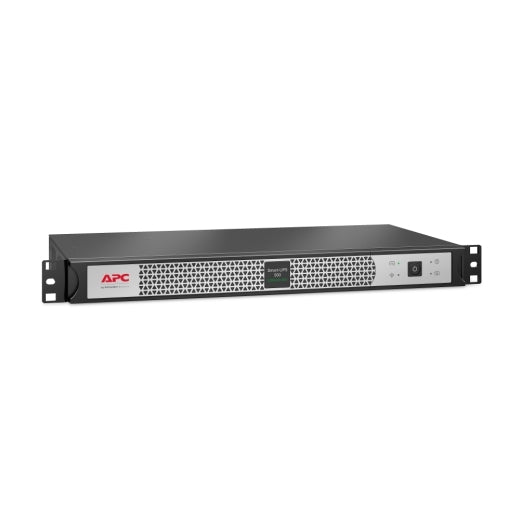

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, SmartConnect Port, Short Depth
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 400 W
Rated power in VA 500 VA
Input Connection Type IEC 60320 C14
Output connection type 4 IEC 60320 C13
Number of rack unit 1U
Battery type Li-Ion (Lithium-Ion)
Provided equipment- Installation guide, Rack mounting support rails, USB cable
Acoustic level 45 dBA
heat dissipation 41.61 Btu/h
Operating altitude 0...10000 ft
Ambient air temperature for operation 0…40 °C
Ambient air temperature for storage -15…45 °C
Storage altitude0.00…7620.00 m
IP degree of protection IP20
Relative humidity 0…95 % non-condensing
Storage Relative Humidity 0…95 % non-condensing
Input protection type Circuit breaker
Input voltage limits 208...253 V
Network frequency 50/60 Hz +/- 3 Hz auto sensing
Mounting mode- Rack mounted
Compatible PDU- AP7850B, AP7950B, AP8702R-WW, AP8702S-WW, AP8702S-WWX340
Compatible Racks- AP9465, AP9470, AP9475, AR7540, AR7540100
Compatible Spare parts- W870-813
Compatible Mounting- AP9625, AR201
