Description

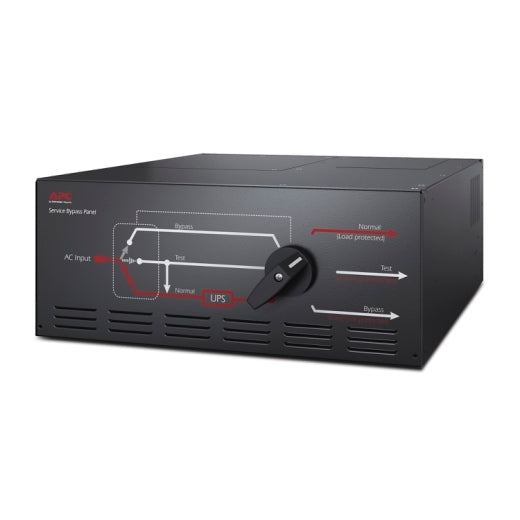

APC Service Bypass Panel 230V MBB 125A HW input IEC-320 output (8) C19
Main Input Voltage 220 V, 230 V, 240 V, 380 V 3 phases, 400 V 3 phases, 415 V 3 phases
Main Output Voltage 230 V
Other Output Voltage 220 V, 240 V
Number of rack unit 4U
Number of cables 1
Number of power socket outlets 8 IEC 60320 C19
Provided equipment- Installation guide, Rack mounting brackets, User manual
Network frequency 50/60 Hz
Number of input connectors 1 hard wire 3-wire (1P + N + E), 1 hard wire 5 wire (3P + N + E)
Max line current 125 A
Input current limits 125 A
Load capacity 20000 VA
Power factor 0…1
Max current draw 125 A
Number of power socket outlets 8 IEC 60320 C19
Protection type Circuit breaker
Efficiency 99 %
Ambient air temperature for operation -20…50 °C
Relative humidity 0…95 %
Operating altitude 0...15000 ft
Ambient air temperature for storage -40…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
