Description

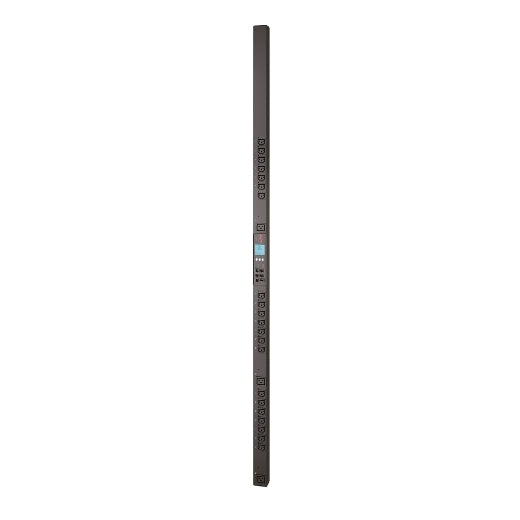

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 20A/208V, 16A/230V, (21) C13 (3) C19
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
Colour Black
PDU type Switched metered outlet
Provided equipment- CAN port terminator, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
Input Voltage 200 V, 208 V, 230 V
Output Voltage 100 V, 200 V, 208 V, 230 V
Mounting preference No preference
Input Plug Type IEC 60320 C20
Rack units 0U
Mounting position Vertical
[In] rated current 16 A
Permissible voltage 100…240 V
Input current limits 20 A
Load capacity- 3300 VA
Network frequency 50/60 Hz
Total number of outlets- 21 IEC 60320 C13, 3 IEC 60320 C19
Ambient air temperature for operation -5…60 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Not rack mountable
Compatible PDU- AP8000BLU, AP8000RED, AP8702R-WW, AP8702S-WW, AP8702S-WWX340
Compatible Sensors- AP9335T, AP9335TH
Compatible Mounting- AR7711
