Description

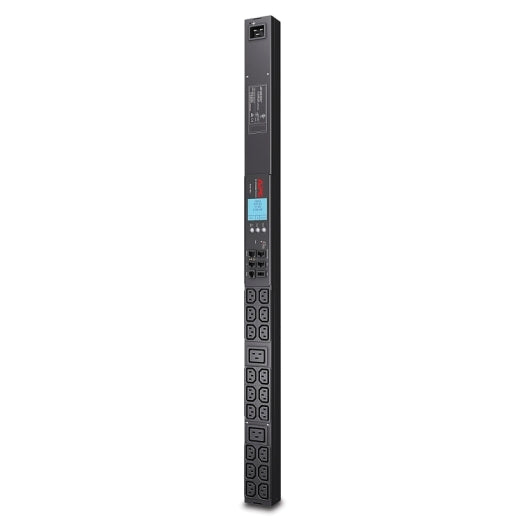

APC NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDUIt integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Colour Black
PDU type Metered
Provided equipment- Installation guide, Rack mounting brackets, Serial configuration cable, Safety guide
Input Voltage 200 V 208 V 230 V
Output Voltage 100 V 200 V 208 V 230 V
Rack units 0U
Mounting position Vertical
[In] rated current 16 A
Permissible voltage 100…240 V
Input current limits 20 A
Load capacity 3300 VA
Network frequency 50/60 Hz
Total number of outlets 18 IEC 60320 C13 2 IEC 60320 C19
Product certifications- METI Denan, VDE
Standards- CSA C22.2 No 60950, IEC 60950, UL 60950-1
Ambient air temperature for operation -5…60 °C
Relative humidity 5…95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
Compatible PDU- AP8000BLU, AP8000RED, AP8702R-WW, AP8702S-WW, AP8702S-WWX340
Compatible Sensors- AP9335T, AP9335TH
Compatible Mounting- AR7711
