Description

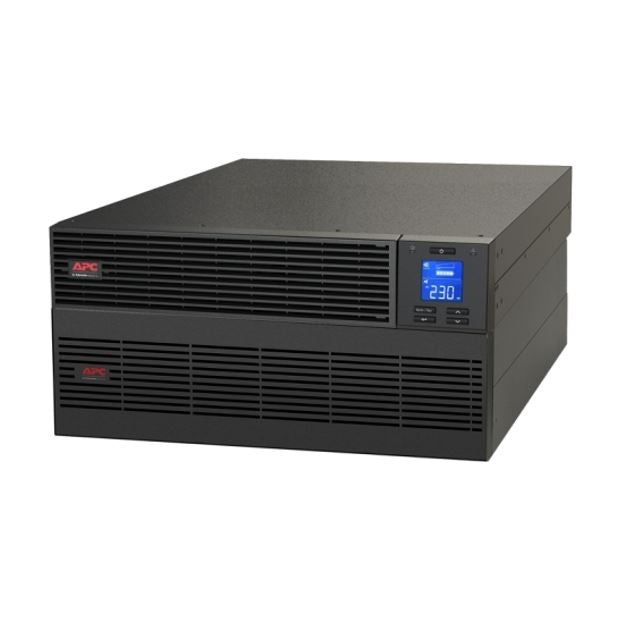

APC Easy UPS On-Line, 10kVA/10kW, Rackmount 5U, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Run time for load 10000 W 2min 32s
Min-max: 1000-10000 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage220 V 240 V
Rated power in W 10000 W
Rated power in VA 10000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Number of rack unit 5U
Provided equipment- 1 USB cable, 1 RS-232 configuration cable, 2 rack mounting brackets, 2 rack mounting support rails, 1 external battery pack, 1 battery cable, user manual
(power cable not incl)
Input voltage limits 110...300 V 60 % load,176...300 V full load
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40..70 Hz auto sensing
Maximum configurable power in VA 10000 VA
Maximum configurable power in W 10000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -15…60 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 58 dBA
Heat dissipation 2128 Btu/h
IP degree of protection IP20
Mounting mode- Rack mounted
Compatible NMC -AP9544, SRVSMB001
Compatible Batteries- SRV240RLBP-9A
