Description

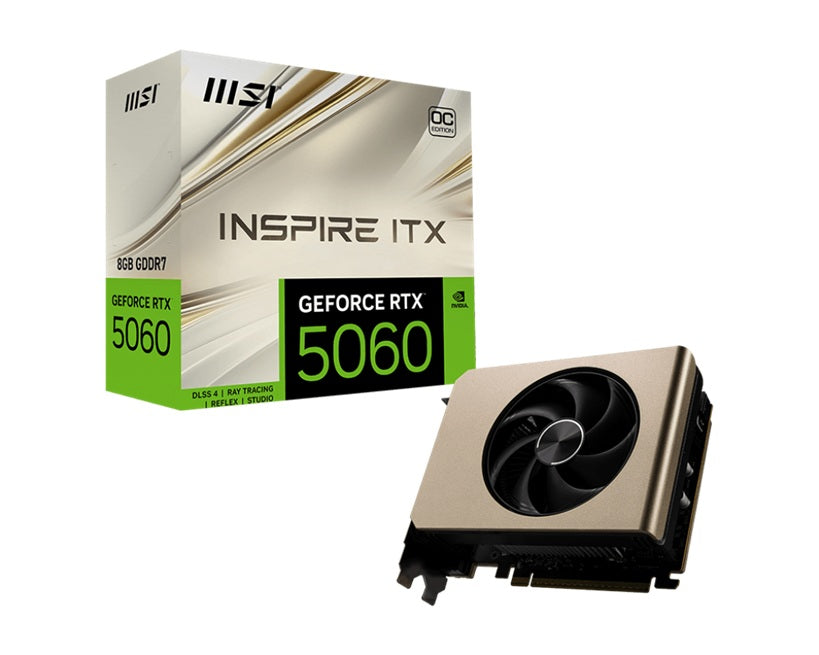

MSI nVidia GeForce RTX 5060 8G INSPIRE ITX OC, Boost: 2535 MHz, CUDA 3840 Units, 8GB GDDR7, PCI Express® Gen 5 x16 (uses x8). HDMI™ x 1 (emabargo)
Marketing Name GeForce RTX™ 5060 8G INSPIRE 2X OC
Model Name G506-8I2C
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2550 MHz (MSI Center)
Boost: 2535 MHz
CUDA® CORES 3840 Units
Memory Speed 28 Gbps
Memory 8 GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 145W
Power connectors 8-pin x 1
Recommended PSU TBD
Card Dimension (mm) 204 x 117 x 41 mm
Weight (Card / Package) TBD
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320
