Description

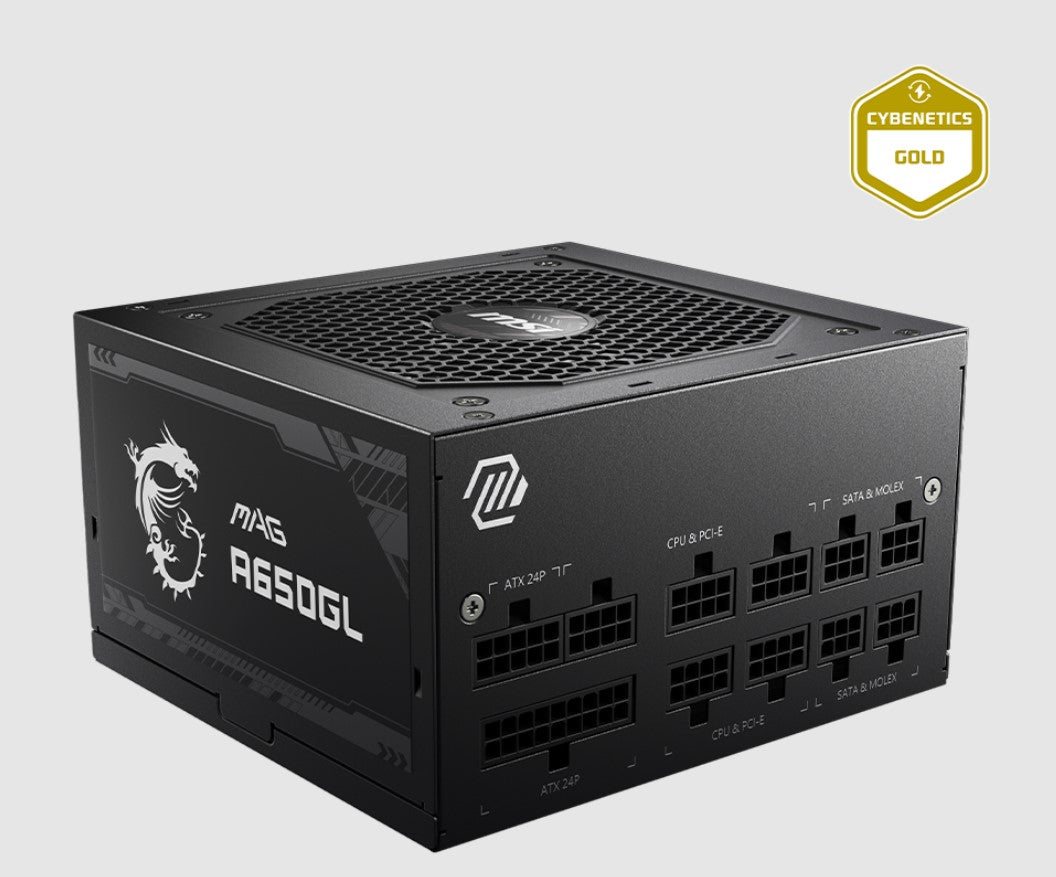

MSI MAG A650GL 650W Power Supply, 80 PLUS Gold, up to 90% Efficiency, Active PFC, OCP / OVP / OPP / OTP / SCP / UVP
Product Name MAG A650GL
Efficiency Rating 80 PLUS Gold (up to 90%)
Modular Yes (full modular)
Fan Size 120 mm
Fan Bearing Fluid Dynamic Bearing
Dimensions (DxWxH) 140 x 150 x 86 mm
PFC Type Active PFC
Input Voltage Range 100~240 VAC
Power Watt 650W
Input Frequency Range 47-63Hz
Protection OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin) 1
EPS (4+4 pin) 2
PCI-E (6+2 pin) 4
SATA (15 pin) 6
PERIPHERAL (4 pin) 3
FDD (4 pin) 1
